What is TPA3110 Audio Amplifier Module
The TPA3110 Audio Amplifier Module is a 15-watt, two-channel audio amplifier that can be used to power speakers or other audio devices. It has built-in volume control and can be used with a variety of audio input sources, making it a versatile addition to any audio system.
The TP A3110 can be used to power a set of speakers, or it can be used as a standalone amplifier for a set of headphones. It has two audio input jacks, one for a 3.5mm audio input and one for digital audio input. It also has a USB port for powering the device and for charging a connected device, such as a smartphone. The TPA3110 has built-in volume control and can be used with a variety of audio input sources, making it a versatile addition to any audio system.
The TPA3110 is a small, lightweight, and portable audio amplifier that is easy to use and set up. It is an ideal choice for anyone looking for a simple way to boost the audio output of their existing audio system.
The TPA3110 Audio Amplifier Module is available for purchase online and in stores.
How to Connect the TPA3110 Audio Amplifier Module with Arduino?

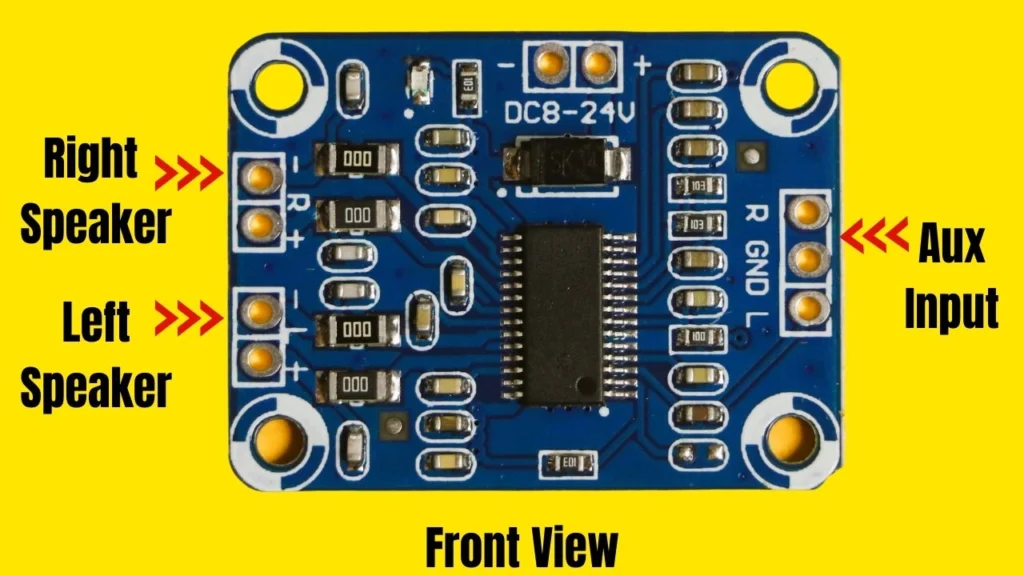

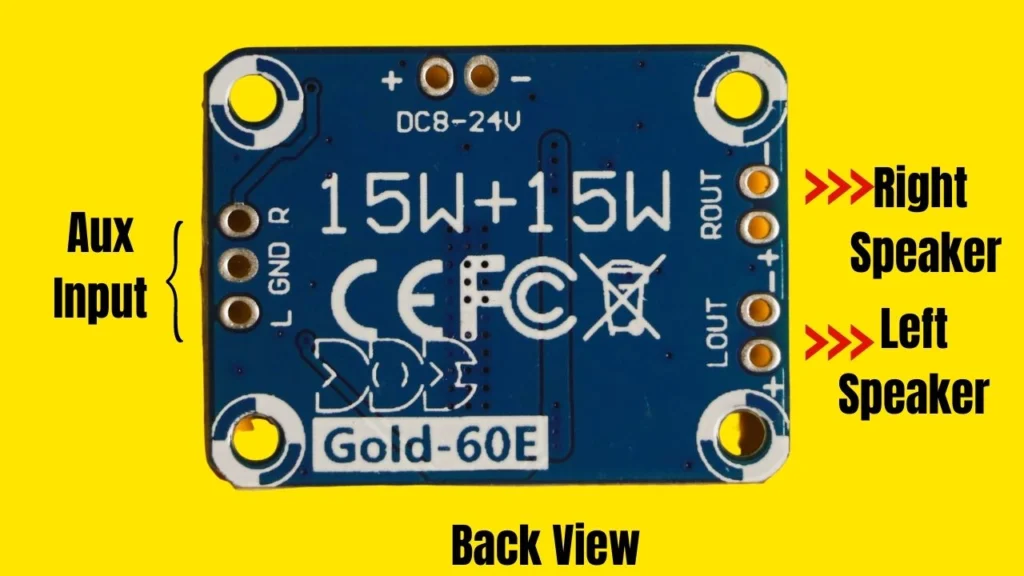

TPA3110 Audio Amplifier Module is a dual-channel audio amplifier, which means it can amplify both the right and left channels simultaneously. The module has 4 pins, two pins are for the Left and Right channels of the input signal, other two are for the output signal. The module has an inbuilt low pass filter and bass boost filter.
Video Demonstrations
Specifications:
– Working Voltage: DC 8-26V.
– Excellent Sound quality by using this module.
– Working Voltage: DC 8-26V.
– Weight: 10 gm / 0.35oz.
– Power output: 2×15 W / 4 ohm RMS
– Total harmonic distortion: 0.1%
– Signal-to-noise ratio: 100 dB
– Frequency response: 20 Hz – 20 kHz
– Input impedance: 2.2 k ohm
– Input sensitivity: 300 mV
– Channel separation: 65 dB
– Dimensions: 44 x 30 x 10 (LxWxH)mm
Applications of TPA3110 Audio Amplifier
- Car DVD and multimedia system.
- GPS navigation system.
- Portable DVD player.
- Notebook, UMPC, MID.
- Mobile phone and PDA.
- Portable digital audio player.
- LCD/PDP/PLASMA TV and monitor.
–
